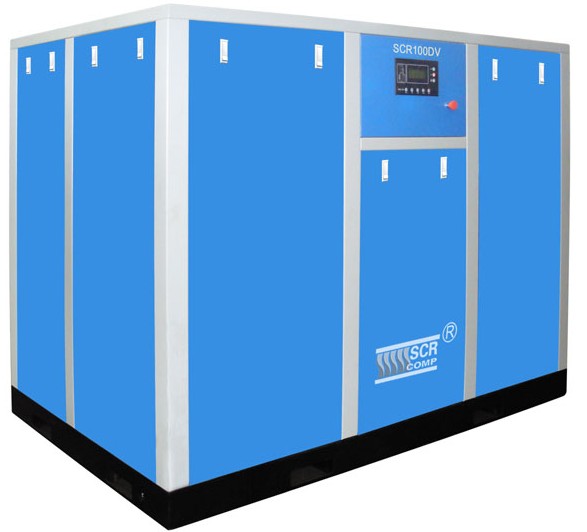

系 列： SCR30DV-SCR375V
供 氣 量： 3.5-52.5 m /min
馬達功率： 22KW-280KW
壓 力： 7-12.5bar
產品說明：
精確匹配 排氣量與實際用氣量精確匹配，避免機組空轉的能耗恒壓節能 壓力波動范圍控制±0.01MPa，免去壓力爬升的能耗靜音環保 高效的矢量控制技術，降低機組震動，實現超級靜
技術參數：
|
型號 |
功率（KW） |
馬力（Hp） |
排氣量（M³/Min） |
壓力（Bar） |
外型尺寸（L×W×H) |
重量（Kg） |
出口尺寸 |
|
SCR30DV-7 |
22 |
30 |
3.7 |
7 |
1380*850*1160 |
590 |
Rc 1 |
|
SCR30DV-8 |
3.6 |
8 |
|||||
|
SCR30DV-10 |
3.5 |
10 |
|||||
|
SCR50DV-7 |
37 |
50 |
6.1 |
7 |
1600*1000*1360 |
870 |
Rc 1 1/2 |
|
SCR50DV-8 |
6.0 |
8 |
|||||
|
SCR50DV-10 |
5.0 |
10 |
|||||
|
SCR60DV-7 |
45 |
60 |
7.3 |
7 |
1820*1000*1360 |
960 |
Rc 1 1/2 |
|
SCR60DV-8 |
7.2 |
8 |
|||||
|
SCR60DV-10 |
7.1 |
10 |
|||||
|
SCR75DV-7 |
55 |
75 |
10.2 |
7 |
2200*1360*1755 |
1830 |
DN50 |
|
SCR75DV-8 |
10.1 |
8 |
|||||
|
SCR75DV-10 |
8.3 |
10 |
|||||
|
SCR100DV-7 |
75 |
100 |
13.3 |
7 |
2200*1360*1755 |
1870 |
DN50 |
|
SCR100DV-8 |
12.9 |
8 |
|||||
|
SCR100DV-10 |
11.8 |
10 |
|||||
|
SCR100DV-12.5 |
8.8 |
12.5 |
|||||
|
SCR125DV-7 |
90 |
125 |
16.3 |
7 |
2800*1600*1775 |
2600 |
DN65 |
|
SCR125DV-8 |
15.1 |
8 |
|||||
|
SCR125DV-10 |
14.5 |
10 |
|||||
|
SCR125DV-12.5 |
12.8 |
12.5 |
|||||
|
SCR150DV-7 |
110 |
150 |
20.1 |
7 |
2800*1600*1775 |
2700 |
DN65 |
|
SCR150DV-8 |
19.5 |
8 |
|||||
|
SCR150DV-10 |
17.5 |
10 |
|||||
|
SCR150DV-12.5 |
15.6 |
12.5 |
|||||
|
SCR180DV-7 |
132 |
180 |
23.5 |
7 |
2700*1750*1850 |
3100 |
DN65 |
|
SCR180DV-8 |
23.4 |
8 |
|||||
|
SCR180DV-10 |
20.5 |
10 |
|||||
|
SCR180DV-12.5 |
17.3 |
12.5 |
|||||
|
SCR220DV-7 |
160 |
220 |
28.1 |
7 |
2700*1750*1850 |
3200 |
DN65 |
|
SCR220DV-8 |
27.6 |
8 |
|||||
|
SCR220DV-10 |
23 |
10 |
|||||
|
SCR220DV-12.5 |
20.1 |
12.5 |
|||||
|
SCR250DV-7 |
185 |
250 |
31.8 |
7 |
2700*1820*1850 |
3500 |
DN80 |
|
SCR250DV-8 |
31.6 |
8 |
|||||
|
SCR250DV-10 |
28.3 |
10 |
|||||
|
SCR250DV-12.5 |
24.5 |
12.5 |
|||||
|
SCR270DV-7 |
200 |
270 |
35 |
7 |
2700*1820*1850 |
3600 |
DN80 |
|
SCR270DV-8 |
33.6 |
8 |
|||||
|
SCR270DV-10 |
30.8 |
10 |
|||||
|
SCR270DV-12.5 |
27.2 |
12.5 |
|||||
|
SCR300DV-7 |
220 |
300 |
38.5 |
7 |
3000*2050*2097 |
5000 |
DN100 |
|
SCR300DV-8 |
38.3 |
8 |
|||||
|
SCR300DV-10 |
33.1 |
10 |
|||||
|
SCR300DV-12.5 |
28.5 |
12.5 |
|||||
|
SCR340DV-7 |
250 |
340 |
44.1 |
7 |
3000*2050*2097 |
5200 |
DN100 |
|
SCR340DV-8 |
43.8 |
8 |
|||||
|
SCR340DV-10 |
38.2 |
10 |
3200*2050*2200 |
||||
|
SCR340DV-12.5 |
32.8 |
12.5 |
|||||
|
SCR375DV-7 |
280 |
375 |
52.5 |
7 |
3460*2050*2200 |
5600 |
DN100 |
|
SCR375DV-8 |
50 |
8 |
|||||
|
SCR375DV-10 |
43.2 |
10 |
|||||
|
SCR375DV-12.5 |
38.6 |
12.5 |
備注:1、此氣量參數為換算到標準工況下的論氣量，終以實測為準。
2、外觀、規格如改進,恕不行通知。
